The Hantek DSO5102P and Rigol DS1054Z are two very popular entry-level bench oscilloscopes, but they serve slightly different needs.
The Hantek gives you 100 MHz bandwidth and 2 channels, while the Rigol gives you 4 channels and an extremely strong feature ecosystem, though with 50 MHz bandwidth in its base model.
Your choice depends on whether channel count or bandwidth matters more for your projects.
📋 Key Specifications Side-by-Side
| Specification | Hantek DSO5102P | Rigol DS1054Z |
|---|---|---|
| Channels | 2 analog | 4 analog |
| Bandwidth | 100 MHz | 50 MHz (base model) |
| Max Sample Rate | 1 GSa/s | 1 GSa/s (single-channel mode) |
| Memory Depth | ~40k points | Up to ~12 Mpts (standard) |
| Display | 7″ 800×480 | 7″ 800×480 |
| FFT/Math | Standard | Strong math, multi-channel FFT |
| Best For | Fast analog signals | Multi-signal debugging |
✅ Strengths of Each

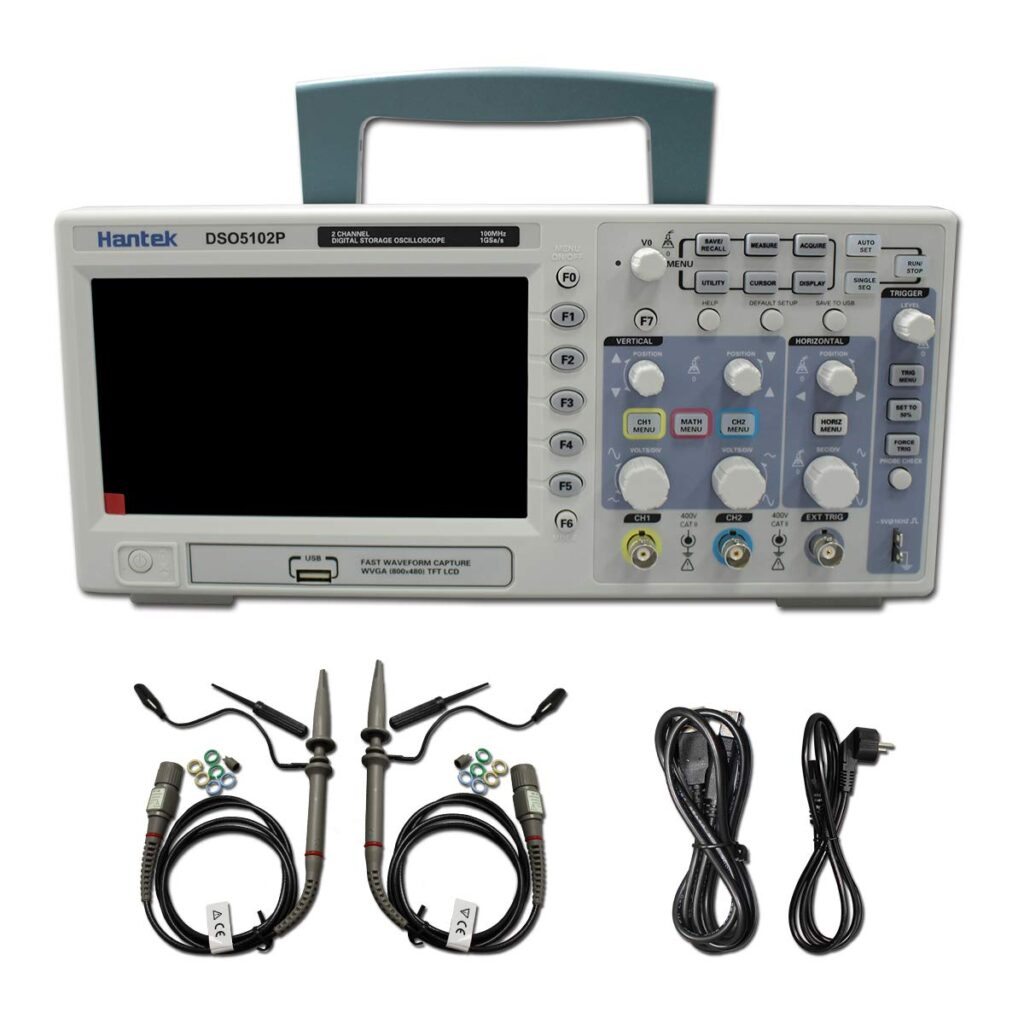

Hantek DSO5102P
- Higher bandwidth (100 MHz) gives better headroom for faster signals
- Good performance for simple analog/sensor work
- Straightforward 2-channel interface
- Typically lower cost compared to Rigol

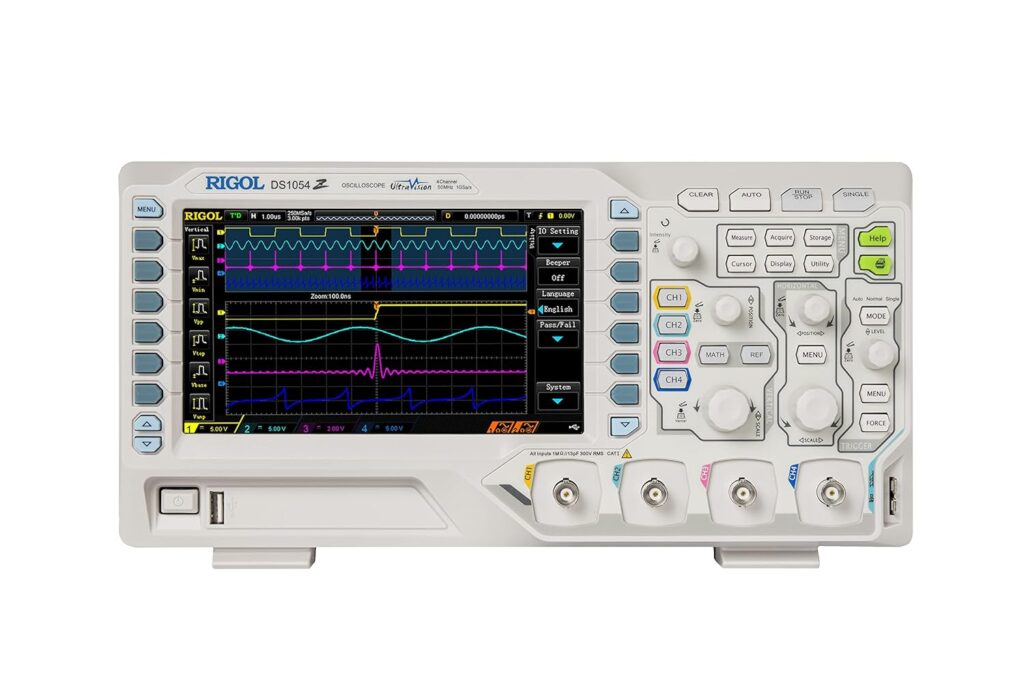

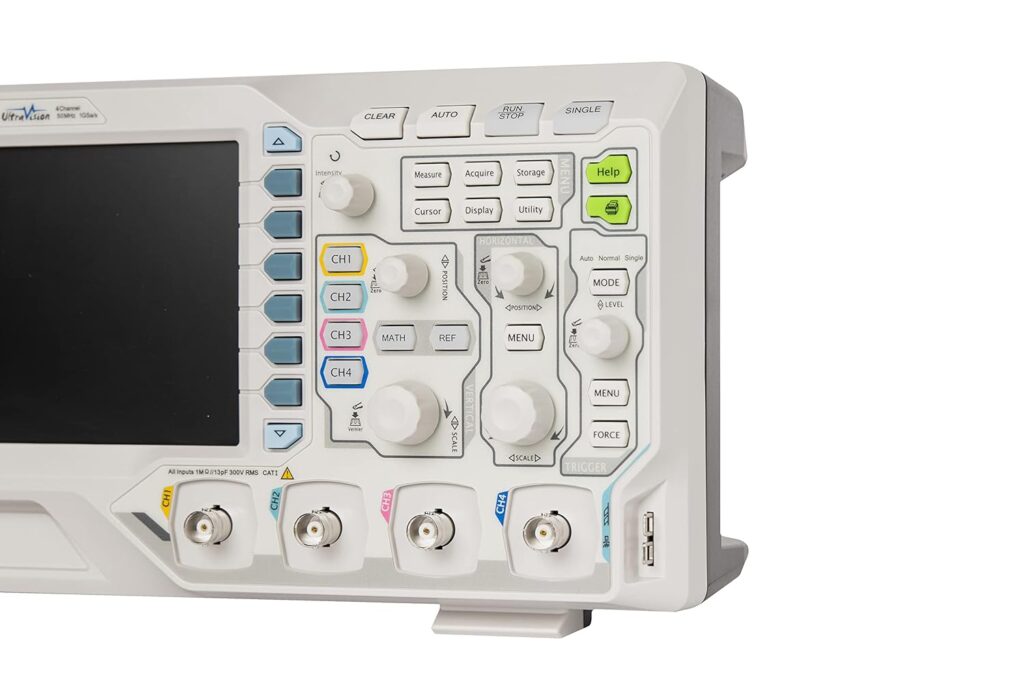

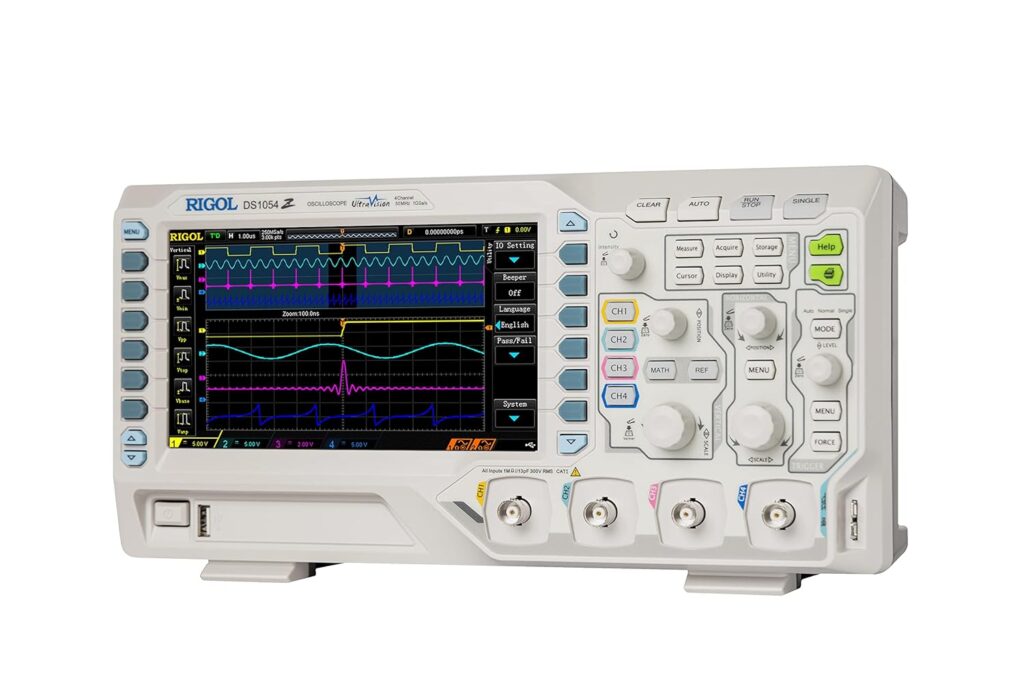

Rigol DS1054Z
- Four analog channels, ideal for embedded systems, bus debugging, and multi-signal analysis
- Deep memory, allowing very long captures without losing detail
- Massive ecosystem: tutorials, community support, walkthroughs
- Powerful analysis features, including advanced triggering and flexible measurement tools
⚠️ Limitations to Consider
Hantek DSO5102P
- Only 2 channels, which can be restrictive for embedded work
- Memory depth is modest by modern standards
- Not as many workflow conveniences as the Rigol platform
Rigol DS1054Z
- Base bandwidth is 50 MHz, limiting higher-speed analog views unless upgraded
- Sample rate decreases as you enable more channels (typical for multi-channel scopes)
- Slightly more expensive, though the added channels often justify it
🎛 Which Users Each Scope Fits Best
Choose the Hantek DSO5102P if you:
- Mostly work with analog, audio, sensors, or power electronics
- Rarely need more than two signals at once
- Prefer higher bandwidth at a lower cost
- Want a simple, straightforward workflow
Choose the Rigol DS1054Z if you:
- Work with embedded systems, microcontrollers, buses, or digital logic
- Need three or four channels regularly
- Want deeper memory for long captures
- Prefer a widely supported, feature-rich ecosystem
🔍 Final Recommendation
If you value extra channels, deep memory, and a proven workflow, the Rigol DS1054Z is the better all-around scope for most engineers.
If you want more bandwidth on a tight budget and only need two channels, the Hantek DSO5102P is a solid option that delivers excellent value.
