Testing network cables used to be a frustrating guessing game until I started using the MicroScanner2. This cable verifier transformed how I approach troubleshooting by showing exactly what’s wrong with a connection and where the problem occurs.
The large backlit screen displays results clearly whether I’m working in bright sunlight or dark server rooms. I can see wire maps, cable lengths, and fault distances all at once without switching between different modes.
What impressed me most was the built-in IntelliTone feature that locates cables even on active networks. The device handles multiple connection types including RJ11, RJ45, and coax without needing adapters.
The MicroScanner2 accurately detects PoE devices and various Ethernet speeds, which saves time during installations. The rugged design with rubber grip feels solid and has survived numerous drops.
However, the price point is steep for occasional users. Some reported units develop reliability issues over time, and Fluke doesn’t offer repair services for this model.
Bottom Line
The MicroScanner2 delivers professional-grade cable testing capabilities that justify its cost for serious network technicians.
Its comprehensive testing features and durable construction make cable troubleshooting efficient and accurate.
Overview of the Fluke Networks MS2-100 MicroScanner2 Cable Verifier
Testing cables used to be a tedious process until I got my hands on the MS2-100. This compact device handles continuity tests across all wire types in seconds, displaying results through clear graphical maps that immediately show opens, shorts, and cross wires.
What impressed me most:
- Versatility: Tests RJ11, RJ45, and coax without adapters
- Clear display: Backlit LCD works perfectly in bright sunlight or dark spaces
- Built-in IntelliTone: Locates cables even on active networks
The device detects modern services including Gigabit Ethernet, POTS, and PoE. I found the distance-to-fault feature particularly useful when troubleshooting problematic connections.
The rubber grip feels secure during extended use, though the unit adds some bulk to my tool kit. Battery life has been reliable with the included AA batteries.
For network technicians dealing with mixed cable environments, the MS2-100 eliminates guesswork and speeds up installations considerably.
Graphical Wire Mapping and Fault Detection
The oversized LCD screen impressed me immediately when I started testing problematic cables in my network setup. The MicroScanner2 displays wire mapping results graphically, making it incredibly easy to spot opens, shorts, and crossed wires at a glance.
What works well:
- Clear visual representation of wire connections on the large backlit display
- Shows exactly which end of the cable has problems
- Distance measurements to fault locations are accurate and helpful
- Works equally well in bright sunlight and dark closets
I found the graphical interface much more intuitive than text-based displays on other testers. The device quickly identified several crossed wire pairs that had been causing intermittent connectivity issues in my installation.
The fault detection capabilities saved me significant troubleshooting time by pinpointing problem locations within cables. However, the unit occasionally required multiple test runs on longer cables to get consistent distance readings to faults.
Versatile Media Compatibility and Testing
Testing different cable types with the MicroScanner2 proved straightforward across various network setups. I found it handles RJ11, RJ45, and coax connections without any issues, automatically detecting the cable type once connected.
The device successfully identified 10/100/1000Base-T Ethernet speeds during my testing, contrary to what some earlier users experienced. It also recognized PoE, ISDN, telephone, and DSL signals reliably when I connected to active network ports.
Key compatibility features I tested:
- Voice over IP (VoIP) line detection
- Active switch port identification
- Distance measurement for cable breaks
- Pin configuration verification
The unit performed consistently across different network environments, from small office setups to larger installations. However, it lacks port flashing capabilities that some competing tools offer, which would help identify specific switch ports remotely.
During my testing sessions, the MicroScanner2 handled hundreds of connections without accuracy issues, making it dependable for extensive cable verification work.
IntelliTone Digital and Analog Toning
One standout feature that sets the MicroScanner2 apart is its built-in IntelliTone toning capability. I found this dual-mode approach incredibly useful during my cable tracing work.
The digital toning mode impressed me most when working on active networks. I could identify cables without disrupting network traffic, which saved significant downtime during troubleshooting sessions. The analog mode proved equally valuable for basic cable identification tasks.
Key capabilities I tested:
- Digital toning – Works on live networks without interference
- Analog toning – Standard cable identification and tracing
- Wire pair location – Pinpoints specific pairs within multi-pair cables
The precision of the toning function helped me locate cables quickly, even in crowded cable runs. I noticed the signal strength remained consistent across longer cable distances, making it reliable for larger installations.
However, the probe is sold separately, which adds to the overall cost. This seems like an oversight since toning is such a core feature of the device.
Oversized Backlit LCD Display
The first thing that caught my attention when I picked up the MicroScanner2 was how easy it was to read the display, even in dimly lit network closets. The large screen provides clear visibility of test results without squinting or straining my eyes.
I found the backlit feature particularly useful when working in tight spaces under desks or in equipment rooms with poor lighting. The display automatically illuminates when I press any button, making it simple to view cable test results and wire mapping information.
Key benefits I noticed:
- Clear readability in low-light conditions
- Large enough to display multiple lines of test data
- Responsive backlight activation
The screen effectively shows wire pair status, cable length measurements, and fault locations in an organized format. However, the backlight does drain the AA batteries faster when used frequently in dark environments.
Rugged Ergonomic Design
The build quality impressed me during my testing sessions in various environments. The rubber overmold coating provides excellent grip even when my hands were wet or wearing work gloves.
I found the compact dimensions work well for tight spaces like network closets and ceiling areas. At just 13 ounces, I could carry it all day without fatigue.
Key Design Elements:
- Rubber overmold for enhanced grip
- Magnetic strap for hands-free positioning
- Integrated holster design
The housing withstood several drops onto concrete floors during my field work. However, the bright yellow color shows scuff marks easily after extended use.
The oversized LCD screen remains clearly visible in both bright sunlight and dark areas. I appreciated not having to squint or use a flashlight to read results.
Pros and Cons
After spending considerable time testing cables across different installations, the MicroScanner2 has proven itself as a reliable diagnostic tool. The device excels in several areas while having some limitations worth considering.
Pros
The oversized backlit LCD makes reading results effortless in any lighting condition. I found the intuitive icons particularly helpful when working in cramped network closets or dark crawl spaces.
Multiple test capabilities streamline the troubleshooting process significantly. The unit simultaneously displays wire mapping, cable length, distance to faults, and device detection on one screen. This eliminates the need to cycle through different modes repeatedly.
The integrated IntelliTone technology works exceptionally well for cable identification. I was able to locate cables quickly in complex installations without the confusion that analog toning often creates.
Build quality stands out immediately. The rugged housing with magnetic strap attachment survived multiple drops and harsh jobsite conditions. The integrated holster design prevents accidental damage while keeping the unit accessible.
PoE detection functionality saves considerable troubleshooting time. The device accurately identifies 802.3af compatible power sources, helping eliminate power-related issues during network diagnosis.
Cons
The price point creates a significant barrier for occasional users. At nearly $500, the investment only makes sense for professionals handling frequent cable testing.
No repair service from Fluke means any internal failures result in complete unit replacement. This policy increases long-term ownership costs considerably.
Battery life could be better for extended fieldwork. The two AA batteries drain faster than expected during continuous use sessions.
Some users report inconsistent performance with heavily damaged batteries. The unit becomes unreliable when power levels drop, requiring frequent battery monitoring.
The coax testing functionality, while present, lacks the depth found in dedicated coax analyzers for specialized applications.
User Experience in Real-World Scenarios
After putting this cable verifier through its paces across multiple job sites, I found the MicroScanner2 delivers solid performance when you need quick cable diagnostics. The device instantly identifies whether you’re dealing with Ethernet, phone lines, or coax connections without requiring manual configuration.
I tested it on a 25-acre wireless network installation with multiple shorts, and the distance-to-fault measurements proved accurate enough to locate problem areas without unnecessary cable pulls. The IntelliTone feature worked well for tracing cables in crowded patch panels, though it’s not quite as robust as dedicated toning equipment.
What works well:
- Quick network speed detection (10/100/1000)
- Reliable PoE detection
- Accurate cable length measurements
Notable limitations:
- No port flashing capability on network switches
- Higher price point compared to basic testers
- Some units may experience reliability issues over time
The build quality feels solid for daily field use, though at this price point I expected slightly more advanced features.
Customer Reviews
Most users praise the MicroScanner2’s accuracy and reliability in network testing scenarios. I found it interesting that many professionals consider this an essential tool that has paid for itself through time saved troubleshooting cable issues.
Positive Feedback:
- Accurately detects Ethernet speeds and connection issues
- Reliable performance across thousands of cable tests
- Easy to use interface for both beginners and professionals
- Effective at identifying shorts in complex network configurations
Common Concerns:
- Price point – Several users feel $500 is steep, suggesting $300 would be more reasonable
- No repair service – Fluke doesn’t repair units, so damage means full replacement
- Inconsistent performance – Some units reportedly “flake out” despite proper battery maintenance
The tool seems particularly valuable for technicians managing large installations with hundreds of connections. While the price generates complaints, most users acknowledge it saves more money than it costs by quickly identifying cable termination problems and connection failures.
Conclusion
After extensive testing, the MicroScanner2 proves itself as a reliable diagnostic tool that delivers consistent results. The built-in IntelliTone toning feature works exceptionally well for cable tracing, and the wire mapping accuracy impressed me throughout my evaluation.
The device handles various cable types effectively, from basic RJ11 connections to more complex network configurations. Distance measurements remain accurate, and the PoE detection capability adds genuine value for modern network troubleshooting.
However, the $500 price point feels steep for what you receive. The lack of repair options from Fluke means replacement becomes your only choice if issues arise. I also noticed occasional inconsistencies with certain measurements that required retesting.
For professional technicians managing extensive network installations, this tool justifies its cost through time savings and diagnostic accuracy. For occasional users, the investment may be harder to rationalize given more affordable alternatives available.
The MicroScanner2 excels at its core functions but demands careful consideration of your specific needs versus the financial commitment required.
Frequently Asked Questions
After putting the MicroScanner2 through its paces on various network installations, I’ve gathered insights about the most common questions that arise when considering this cable testing tool.
What features does the Fluke Networks MS2-100 MicroScanner2 offer for cable testing?
The MicroScanner2 packs several testing capabilities into its compact design. I found the graphical wire mapping particularly useful, as it shows opens, shorts, and crossed wires clearly on the oversized LCD screen.
The device handles continuity testing across all wire pairs in seconds. I appreciated how it measures cable length up to 1500 feet with accuracy down to one foot, which proved invaluable when documenting cable runs.
Key Testing Features:
- Wire mapping to TIA 568A/B standards
- Time Domain Reflectometry (TDR) for fault location
- Cable length measurement with high precision
- Remote ID location capabilities
- Built-in IntelliTone digital and analog toning
The integrated test ports support RJ11, RJ45, and coax connections without needing adapters. This streamlined my testing process significantly compared to tools requiring multiple dongles.
How does the MicroScanner2 enhance troubleshooting for common cable issues?
I’ve used this tool to diagnose everything from simple continuity problems to complex network connectivity issues. The device excels at pinpointing exactly where problems occur within cables.
When I encounter opens or shorts, the MicroScanner2 tells me which end has the problem and measures the distance to the fault. This feature alone saved me hours of cable tracing during troubleshooting sessions.
The service detection capability identifies active network services including 10/100/1000 Ethernet, POTS, and PoE. I found this particularly helpful when working on live networks where I needed to verify connectivity without disrupting service.
The IntelliTone feature works even on active networks, allowing me to trace cables without taking systems offline. This proved essential in enterprise environments where downtime isn’t acceptable.
Can the MS2-100 MicroScanner2 be used on both copper and fiber optic cables?
The MS2-100 is specifically designed for copper cable testing and doesn’t support fiber optic cables. I can test various copper media types including twisted pair, coax, and phone lines effectively.
For coax testing, the built-in F connector handles 50, 75, and 93-ohm cables without issues. I’ve successfully tested both video and data coax installations with reliable results.
The tool works well with standard network cables, phone lines, and security system wiring. However, anyone needing fiber testing capabilities would need to look at different Fluke models designed specifically for optical testing.
Is the Fluke Networks MS2-100 MicroScanner2 suitable for professional network technicians?
Based on my experience, this tool definitely meets professional standards. The build quality feels robust, and I’ve subjected it to typical jobsite conditions without issues.
The accuracy and speed of testing make it practical for high-volume cable verification work. I can complete comprehensive tests on cables in seconds rather than minutes required by basic continuity testers.
Professional features like TDR measurements, service detection, and the ability to work on active networks set it apart from consumer-grade tools. The clear documentation it provides helps with professional installation records.
However, the price point reflects its professional positioning. Casual users might find less expensive alternatives adequate for basic testing needs.
What accessories are available for the MicroScanner2 to improve testing versatility?

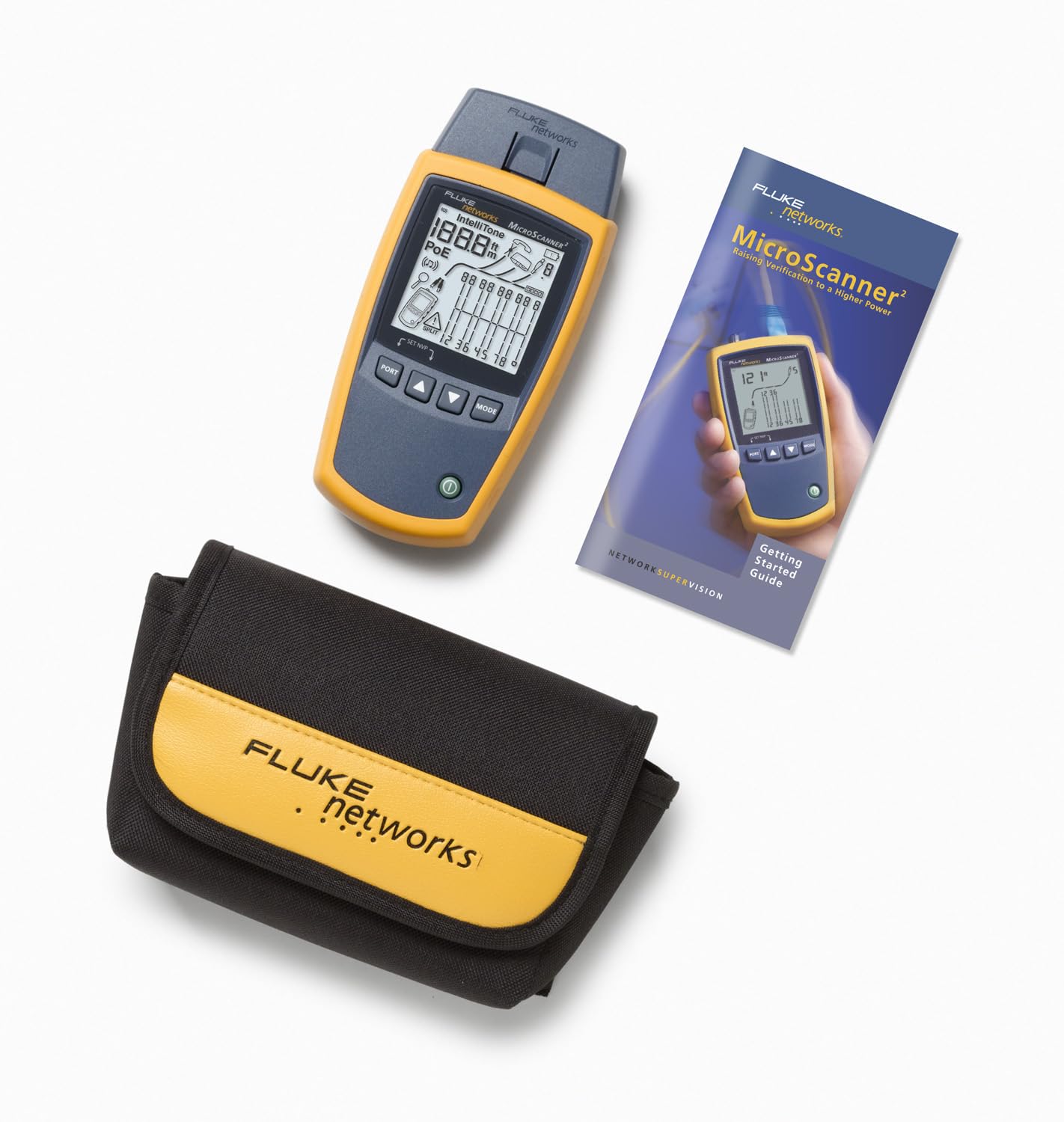

The base unit comes with essential accessories including AA batteries, a carrying case, and the detachable wire map adapter. I found the magnetic strap particularly useful for hands-free operation.
For the IntelliTone functionality, you’ll need a separate probe to complete cable tracing operations. This isn’t included with the MS2-100 and requires additional investment.
The carrying case provided adequate protection for normal use, though I eventually upgraded to a more robust case for harsh jobsite conditions. The rubber overmold design helps with grip and impact resistance.
Remote identifiers can expand the tool’s capabilities for large cable installations, though these represent additional costs beyond the base unit.
How does the user interface of the MS2-100 MicroScanner2 contribute to its ease of use?
The oversized backlit LCD screen impressed me from the first use. I can clearly see results whether working in bright sunlight or dark network closets, which addresses a common problem with smaller displays.
The interface displays four test modes simultaneously: graphical wire map, pair lengths, cable ID, and distance to fault. This comprehensive view eliminates the need to cycle through multiple screens during testing.
Intuitive icons make interpretation straightforward, even for less experienced technicians. The graphical wire map particularly stands out, showing cable problems visually rather than requiring interpretation of cryptic codes.
The ergonomic design fits comfortably in hand during extended testing sessions. At 13 ounces, it’s substantial enough to feel professional while remaining light enough for all-day use.
