Wire tracers are essential tools for electricians, technicians, and DIY enthusiasts who need to locate and identify electrical wiring.
🏷️ Fluke Wire Tracer Deals ⭐⭐⭐⭐
When you’re troubleshooting a dead circuit, tracing wires behind walls, or mapping out underground cables, a wire tracer can save time, reduce guesswork, and improve safety.
⚡ What is a Wire Tracer?
A wire tracer is a diagnostic tool designed to detect and follow the path of electrical wires. It usually consists of two main parts:
- Transmitter – sends a signal through the wire or circuit.
- Receiver – picks up the signal, helping you follow the wire’s route.
Wire tracers can be used on both energized (live) and de-energized (dead) circuits, depending on the model.
🛠️ Types of Wire Tracers
There are several categories of wire tracers, each suited for specific applications:
1. Basic Circuit Breaker Finders
- Identify which breaker controls a particular outlet or fixture.
- Often include a GFCI tester.
- Best for residential and light-duty work.
2. Advanced Wire Tracers
- Trace both live and dead circuits.
- Can follow wires through walls, floors, and underground.
- Include adjustable sensitivity, audible and visual indicators, and sometimes built-in flashlights or NCV (non-contact voltage) detectors.
- Suited for professional electricians and commercial jobs.
3. Tone Generators and Probe Kits
- Common in telecom and low-voltage applications.
- Send an audible tone through telephone, coaxial, or data cables.
- The probe detects the tone, making it easy to trace individual wires in a bundle.
Comparison Table: Top Wire Tracers
| Model | Voltage Rating | Circuit Compatibility | Key Features | Best For |
|---|---|---|---|---|

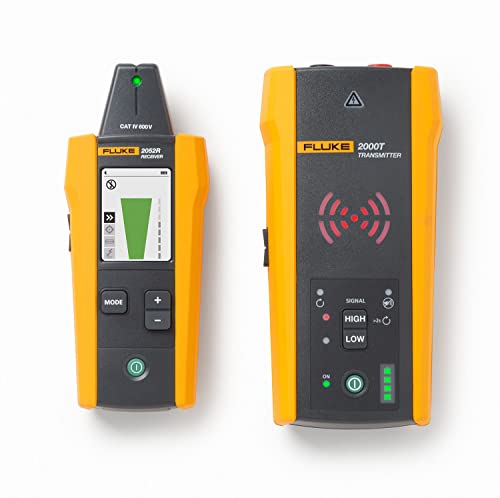

| Fluke 2052 | Up to CAT IV 600 V | Energized & de-energized circuits | Multiple tracing modes, NCV detection, clamp accessory | Professional electricians, commercial/industrial use |
| Fluke 2062 | Up to CAT IV 600 V | Energized & de-energized circuits | Smart Sensor display, full accessory kit | Advanced professionals, utility work |
| Klein ET450 | Up to CAT III 600 V | Energized & de-energized circuits | Adjustable sensitivity, NCV, flashlight, accessories | Contractors, general electrical tracing |
| Southwire Analog Kit | Low-voltage | Non-energized, low-voltage cables | Tone and probe, simple analog display, adapters | Telecom, data cables, DIY users |
Which Wire Tracer Should You Choose?
- For DIY and Home Users: The Southwire Analog Kit is affordable and simple. It’s great for tracing telephone, coax, or data cables, but it’s not designed for high-voltage circuits.
- For General Contractors: The Klein ET450 offers the best balance of features and price. It can trace both live and dead circuits, works through walls, and includes helpful extras like adjustable sensitivity, non-contact voltage detection, and a flashlight.
- For Professional Electricians: The Fluke 2052 is a durable, high-accuracy tool that can handle complex tracing jobs in commercial and industrial environments. It supports both energized and de-energized circuits safely.
- For Advanced Professionals and Utility Work: The Fluke 2062 takes tracing a step further with advanced visualization features and a full accessory kit, making it ideal for demanding applications where precision is critical.
🎛️ Key Features to Look For
When choosing a wire tracer, consider these features:
- Voltage Range: Compatibility with the circuits you work on (low-voltage, residential, or industrial).
- Energized vs De-energized Capability: Some models work only on dead circuits, while advanced tracers can handle both.
- Sensitivity Adjustment: Helps fine-tune detection to avoid interference.
- Indicators: LED display, audible tone, or both for easier detection.
- Durability: Rugged design for job site use, with drop protection.
- Accessories: Leads, adapters, carrying cases for versatile use.
📡 Common Applications
Wire tracers are widely used across industries. Typical applications include:
- Locating a specific circuit breaker for an outlet or fixture.
- Finding hidden wires in walls or ceilings.
- Tracing underground wires and cables.
- Troubleshooting short circuits or open circuits.
- Identifying telephone or data cable pairs.
✅ Benefits of Using a Wire Tracer
- Saves time: Reduces trial-and-error when identifying circuits.
- Improves safety: Prevents accidental contact with live wires.
- Versatile: Works in residential, commercial, and industrial settings.
- Cost-effective: Minimizes unnecessary wire damage and repairs.
🧰 Choosing the Right Wire Tracer
- For homeowners or DIY use, a basic breaker finder with GFCI test function is usually enough.
- For electricians and contractors, an advanced wire tracer with sensitivity control and live/dead circuit compatibility is a better investment.
- For low-voltage techs, a tone generator and probe kit is the go-to tool.
🎯 Final Thoughts
A wire tracer is more than just a convenience—it’s a tool that enhances productivity, accuracy, and safety. From simple breaker identification to tracing complex underground wiring, there’s a tracer designed for every job. Choosing the right model ensures you get the performance you need without overpaying for features you’ll never use.
