The Rigol DS1054Z has been the most recommended beginner oscilloscope for almost a decade. The DS1102Z-E was introduced as a more modern alternative with more bandwidth and better performance while keeping the familiar Rigol interface users love.
🏷️ Oscilloscope Deals ⭐⭐⭐⭐
If you’re unsure which model is the better fit for your electronics bench, this guide breaks down the REAL differences so you can make a confident choice.
Overview

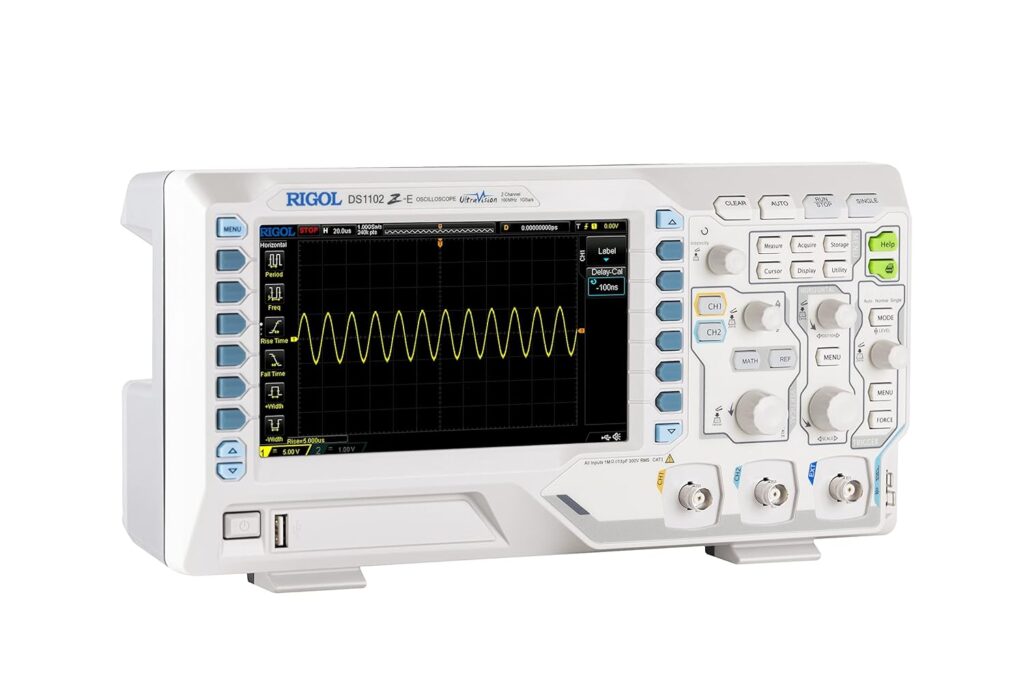

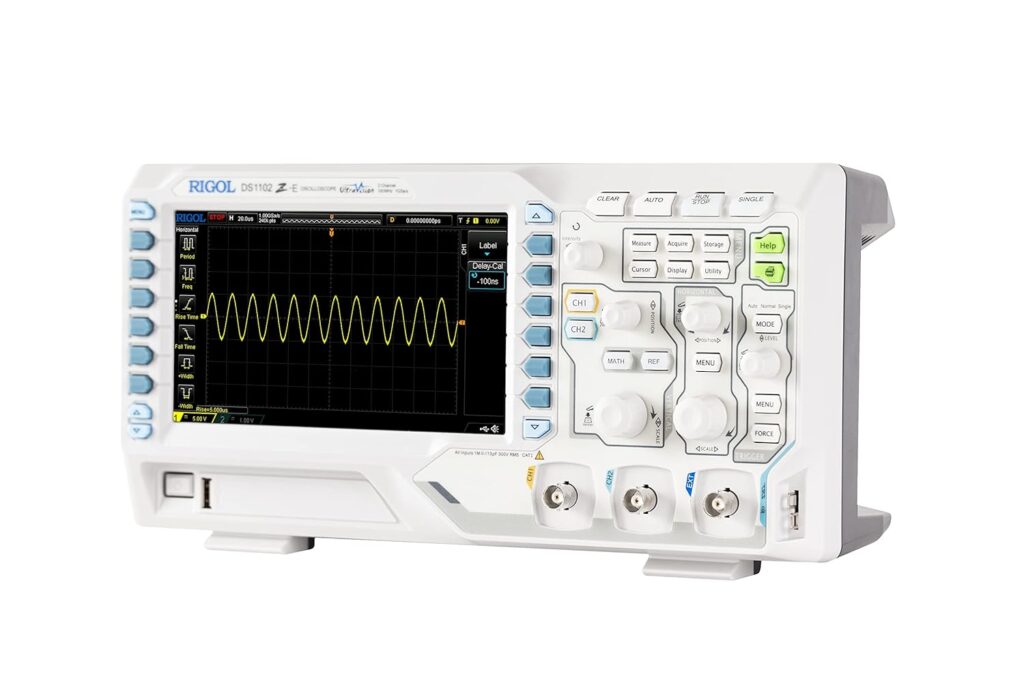

Rigol DS1102Z-E
A faster, cleaner, more capable scope with 100 MHz bandwidth, a deeper memory option, and improved signal performance. Great for users who want DS1054Z familiarity but need better speed and bandwidth.

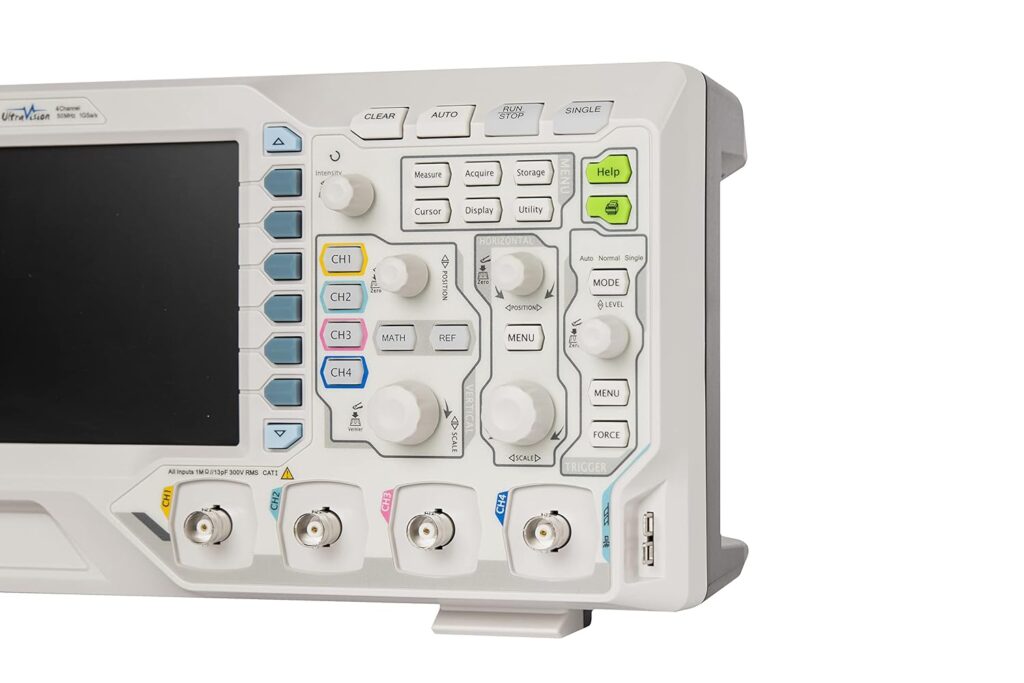

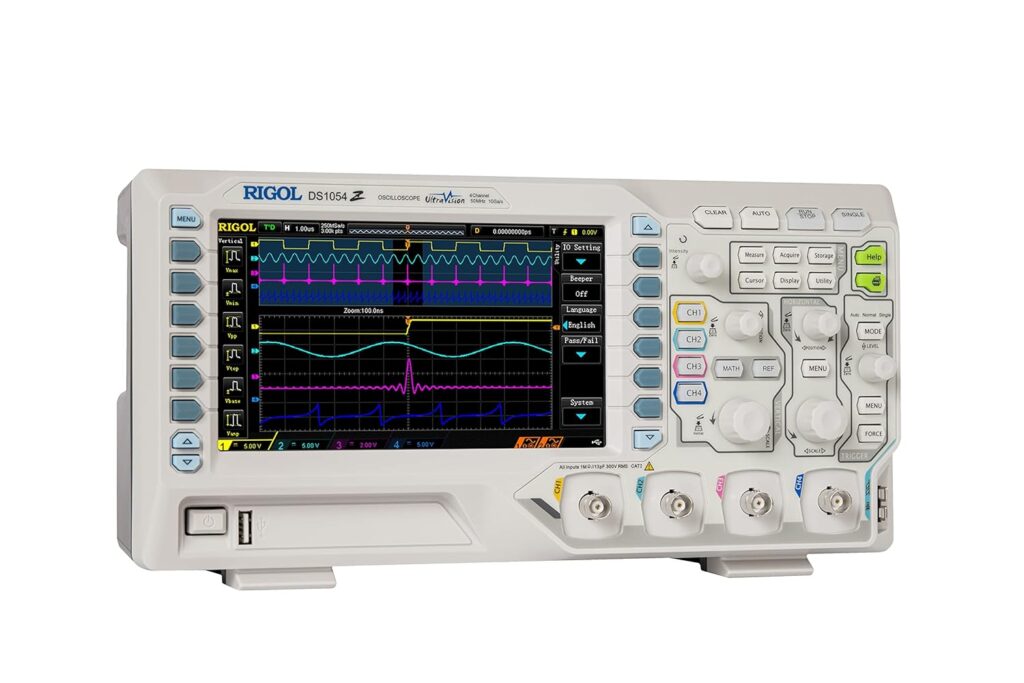

Rigol DS1054Z
The legendary beginner scope. Affordable, feature-packed, widely supported, and still one of the best values in test equipment.
Specification Comparison
| Feature | Rigol DS1102Z-E | Rigol DS1054Z |
|---|---|---|
| Bandwidth | 100 MHz | 50 MHz (unlockable to 100 MHz) |
| Channels | 2 | 4 |
| Sample Rate | 1 GSa/s (single channel) | 1 GSa/s (shared) |
| Memory Depth | 24 Mpts (optional upgrade) | 12 Mpts |
| Waveform Update Rate | ~30,000 wfms/s | ~30,000 wfms/s |
| Serial Decode | Optional | Optional |
| Noise Performance | Lower noise, cleaner traces | Higher noise floor |
| Display | 7” WVGA | 7” WVGA |
| Fan Noise | Quieter | Louder |
| Pricing | 👉 Check Price | 👉 Check Price |
Performance and Functionality
Bandwidth & Channels
The DS1102Z-E gives you 100 MHz bandwidth, but only 2 channels.
The DS1054Z gives you 4 channels, but only 50 MHz (unless unlocked).
If you need more channels, the DS1054Z wins.
If you need more bandwidth, the DS1102Z-E wins.
Signal Quality
The DS1102Z-E has noticeably:
- Cleaner signals
- Lower jitter
- Lower noise floor
Analog performance is simply better.
Memory Depth
Memory depth affects your ability to zoom and analyze long captures.
- DS1054Z: 12 Mpts
- DS1102Z-E: Up to 24 Mpts (upgrade)
For embedded work or serial decoding, deeper memory is extremely useful.
Waveform Update Rate
Both scopes peak at around 30k wfms/s, but the DS1102Z-E tends to maintain higher speeds during complex captures.
Serial Protocol Decoding
Both scopes require optional upgrades for decoding.
The DS1102Z-E provides:
- Smoother decoding
- Less lag when navigating long captures
- Better zoom performance
Usability and Interface
Both scopes share:
- Rigol’s familiar UI
- Similar button layout
- Identical learning curve
The DS1102Z-E benefits from:
- Faster menu response
- Improved rendering of math waveforms
- Better trigger performance
These improvements matter for frequent or professional users.
Build Quality and Design
DS1054Z
- Proven, durable design
- Louder fan
- Huge user community
- Tons of tutorials and guides
DS1102Z-E
- More modern internal design
- Quieter operation
- Improved analog front-end
Ideal Use Cases
| User Type | Recommended Model | Why |
|---|---|---|
| Absolute Beginner | DS1054Z | 4 channels + simplest learning curve |
| Hobbyist | DS1054Z | Best all-around value |
| Student | DS1054Z | Most tutorials and support |
| Professional Engineer | DS1102Z-E | Better analog performance |
| Embedded Developer | DS1102Z-E | Higher bandwidth and cleaner signals |
| Mixed-signal debugging | DS1054Z | Extra channels |
Verdict
Both scopes are excellent, but they serve different needs.
Choose the Rigol DS1054Z if:
- You want four channels
- You’re a beginner or hobbyist
- You want unbeatable value
- You want the most community support
Choose the Rigol DS1102Z-E if:
- You need 100 MHz bandwidth
- You want cleaner, lower-noise signals
- You’re doing professional or embedded work
- You want a more modern instrument
Bottom Line
The Rigol DS1054Z remains the best beginner oscilloscope on the market.
The DS1102Z-E is the better choice for users who need stronger signal performance, higher bandwidth, and cleaner captures.
