Handheld thermal cameras have become essential tools for HVAC technicians, electricians, inspectors, and DIY troubleshooters. HSFTools’ HF96 and HF96V are two affordable, compact, and highly capable thermal imagers designed for maintenance, diagnostics, and general temperature measurement tasks.
Although they look nearly identical and share the same core hardware, there are a few key differences that might make one model better suited for your needs. This comparison breaks down everything you need to know.
🏷️ Thermal Camera Deals ⭐⭐⭐⭐
🔍 Overview

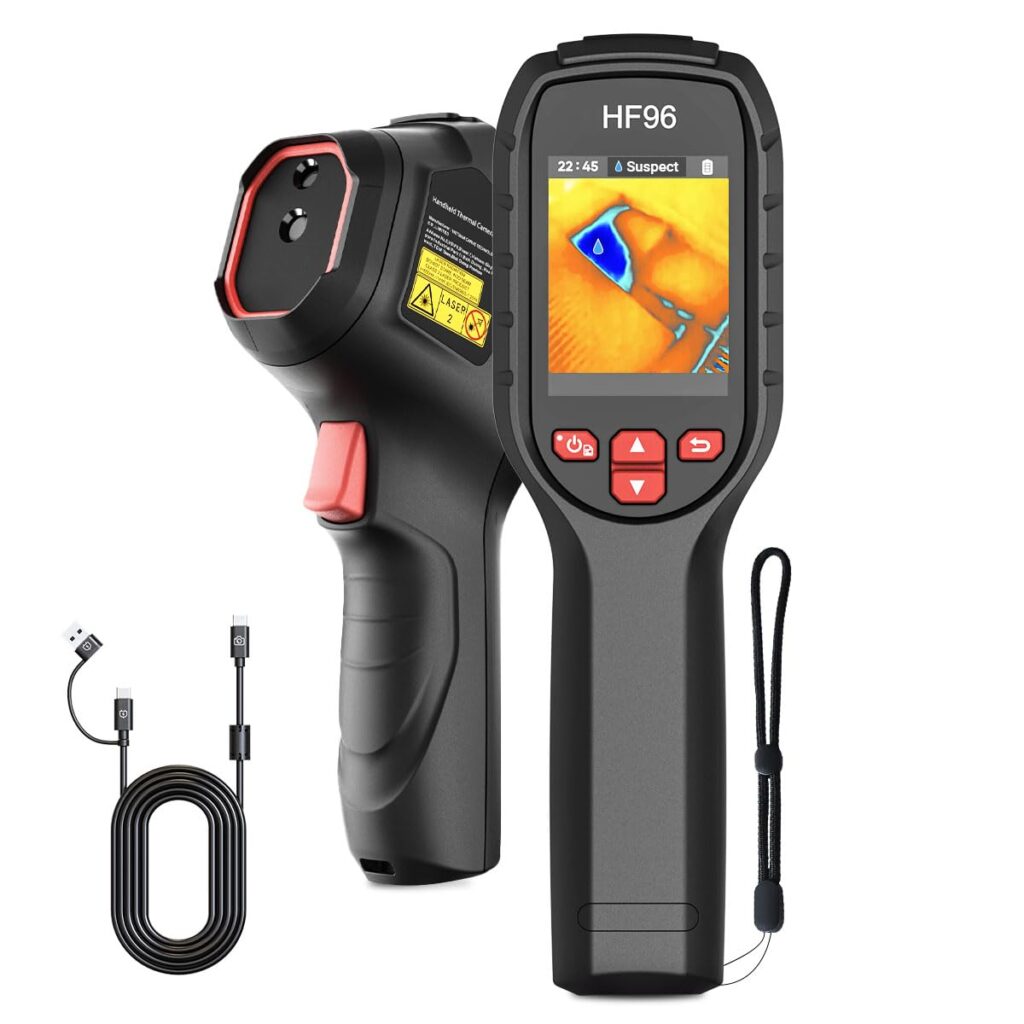

The HF96 is the base model: a simple, reliable thermal camera with a 96 × 96 IR sensor, 112:1 D:S, and up to 8 hours of battery life. It captures thermal-only images and includes multiple color palettes for diagnostics. It’s ideal for users who don’t need additional visual overlays.

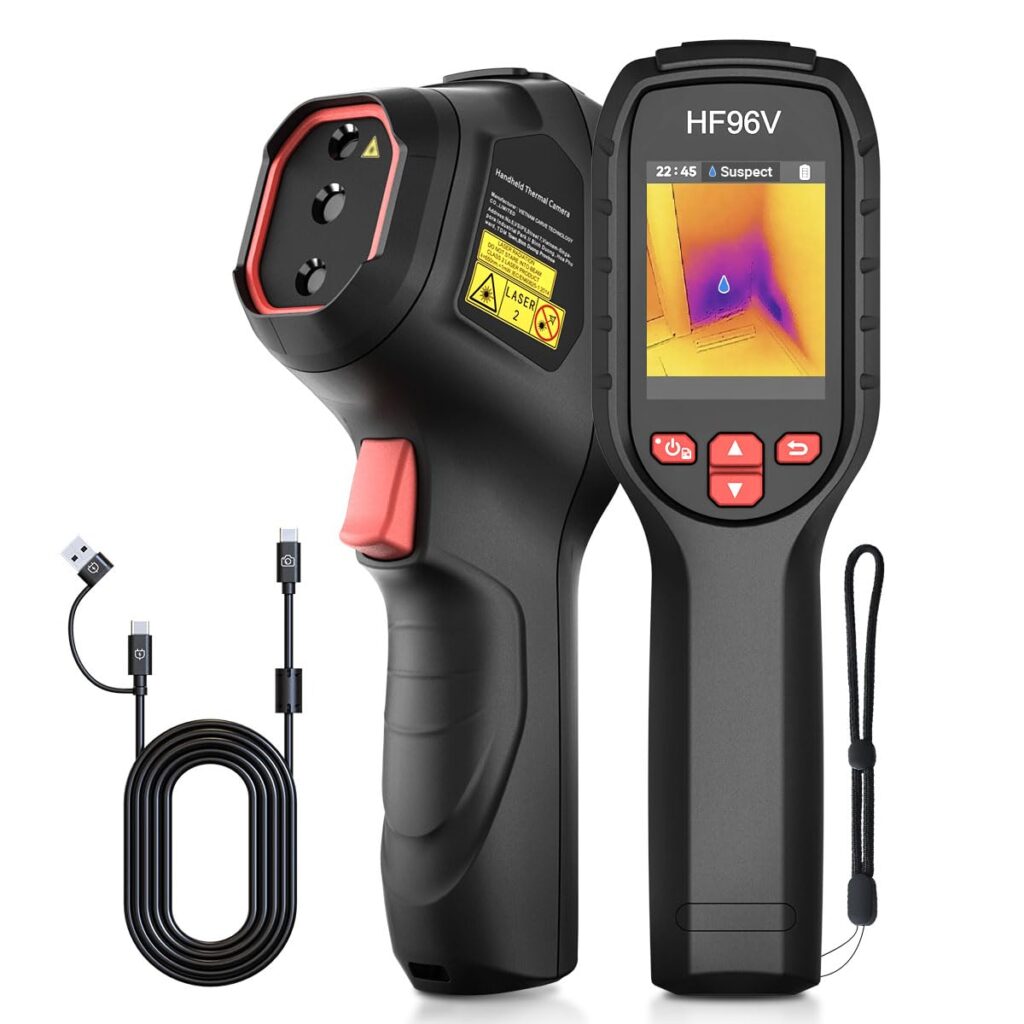

The HF96V adds visual, thermal, and fusion imaging modes, giving you a clearer view of your target by blending thermal and visible-light data. It also includes the same 96 × 96 core thermal resolution, but provides improved usability in complex environments such as mechanical rooms, electrical panels, and outdoor inspections.
🛒 Check today’s deals on HF96V
📊 Specification Comparison
| Feature | HF96 | HF96V |
|---|---|---|
| Thermal Resolution | 96 × 96 (9,216 px) | 96 × 96 (9,216 px) |
| Super Resolution | 240 × 240 (57,600 px) | 240 × 240 (57,600 px) |
| Image Modes | Thermal | Thermal / Visual / Fusion |
| D:S Ratio | 112:1 | 112:1 |
| Frame Rate | 25 Hz | 25 Hz |
| NETD | < 50 mK | < 50 mK |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion |
| Visible Camera | — | 640 × 480 (integrated) |
| Temperature Range | –20°C to 550°C | –20°C to 550°C |
| Image Storage | 4 GB, ~30,000 images | 4 GB, ~30,000 images |
| Battery Life | ~8 hours | ~8 hours |
| Weight | 290 g | 290 g |
| Protection | IP54 | IP54 |
| Drop Rating | 2 m | 2 m |
| Display | 2.4″ LCD (240×320) | 2.4″ LCD (240×320) |
| 💳 Pricing | 💲Check Price | 💲Check Price |
(Values sourced from HF96 and HF96V datasheets )
⚙️ Performance and Functionality
Both models use the same thermal imaging sensor, same D:S ratio, and same processing engine. That means core imaging performance – temperature accuracy, noise level, resolution, and sensitivity – is identical.
The major difference is imaging flexibility:
HF96
✔ Thermal-only imaging
✔ Excellent for basic heat checks, HVAC, troubleshooting hot/cold spots
✔ Lower cost
HF96V
✔ Adds visual and fusion modes
✔ Fusion overlays thermal data on a visible image for easier context
✔ Better for inspections where the scene is visually complex
✔ More accurate target identification
Technicians who work in poorly lit environments or cluttered panels will find HF96V significantly easier to use.
🧰 Build and Design
According to both datasheets ( ), HF96 and HF96V share the exact same:
- 196 × 117 × 59 mm body
- 290 g weight
- IP54 protection
- 2 m drop resistance
- USB-C charging
- 4 GB internal storage
- 8-hour Li-ion battery
They are visually identical except for the added lens/sensor module inside HF96V that enables visual and fusion capture.
Both models feature a focus-free fixed lens, so you can simply point and capture without adjusting focus.
💡 Ease of Use
The HF96 is simpler: you power it on, choose a color palette, and take thermal images.
The HF96V offers more options:
- Thermal
- Visual
- Thermal/Visual Fusion
This makes it more versatile but adds one or two extra menu steps for users who want the fastest workflow.
Both cameras:
- Boot quickly
- Offer auto/manual level & span
- Include laser pointer for precise targeting
- Store ~30,000 images internally
Both are excellent for beginners.
🧩 Ideal Use Cases
| User Type | Recommended Model | Why |
|---|---|---|
| HVAC Technicians | HF96V | Fusion mode helps identify components easily |
| Electricians | HF96V | Visual + thermal gives context inside panels |
| Home Inspectors | HF96V | Fusion simplifies reporting for clients |
| DIY Troubleshooters | HF96 | Affordable and powerful |
| General Maintenance | HF96 | Great for basic thermal diagnostics |
| Industrial Technicians | HF96V | Better visibility in complex environments |
🏁 Verdict
Both the HF96 and HF96V deliver excellent thermal performance, long battery life, and rugged reliability. They share the same thermal core and physical design, meaning image quality and temperature accuracy are identical.
Choose HF96 if you want:
✔ the lowest cost
✔ thermal-only simplicity
✔ a reliable everyday imager
Choose HF96V if you want:
✔ visual + fusion imaging modes
✔ easier documentation and target identification
✔ more professional versatility
In short, the HF96 is the value pick, while HF96V is the smarter choice for inspections, reporting, and field work where visual context matters.
