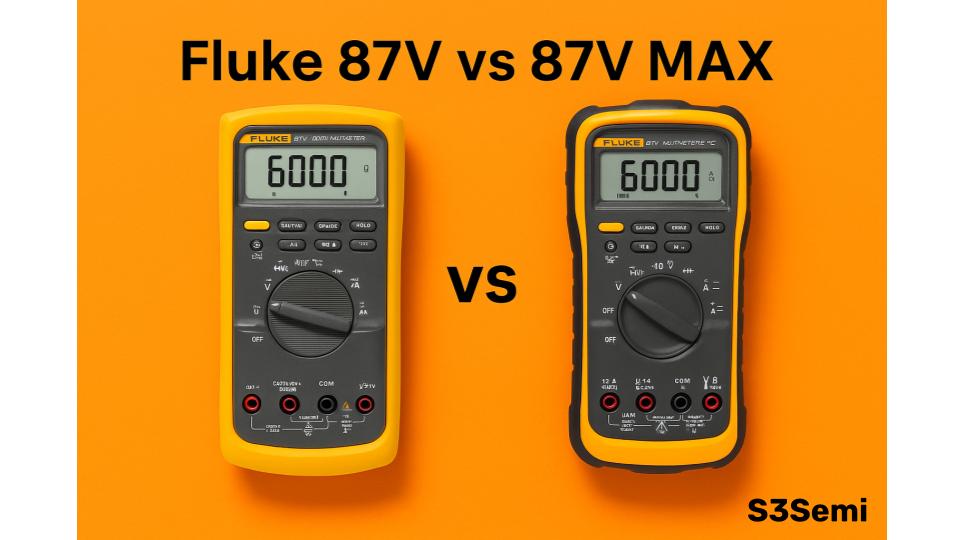

Fluke has long been the gold standard in the world of professional multimeters. Known for accuracy, ruggedness, and reliability, the Fluke 87V has been a staple for electricians and engineers for decades.
Its newer sibling, the Fluke 87V MAX, builds on that legendary foundation, adding modern durability and environmental protection. But which one is the better investment for you? Let’s break down the key differences.
🔍 Overview
The Fluke 87V is a precision True RMS multimeter that’s ideal for troubleshooting both industrial and residential electrical systems. It’s accurate, reliable, and designed for demanding environments such as manufacturing floors, electrical panels, and HVAC systems.

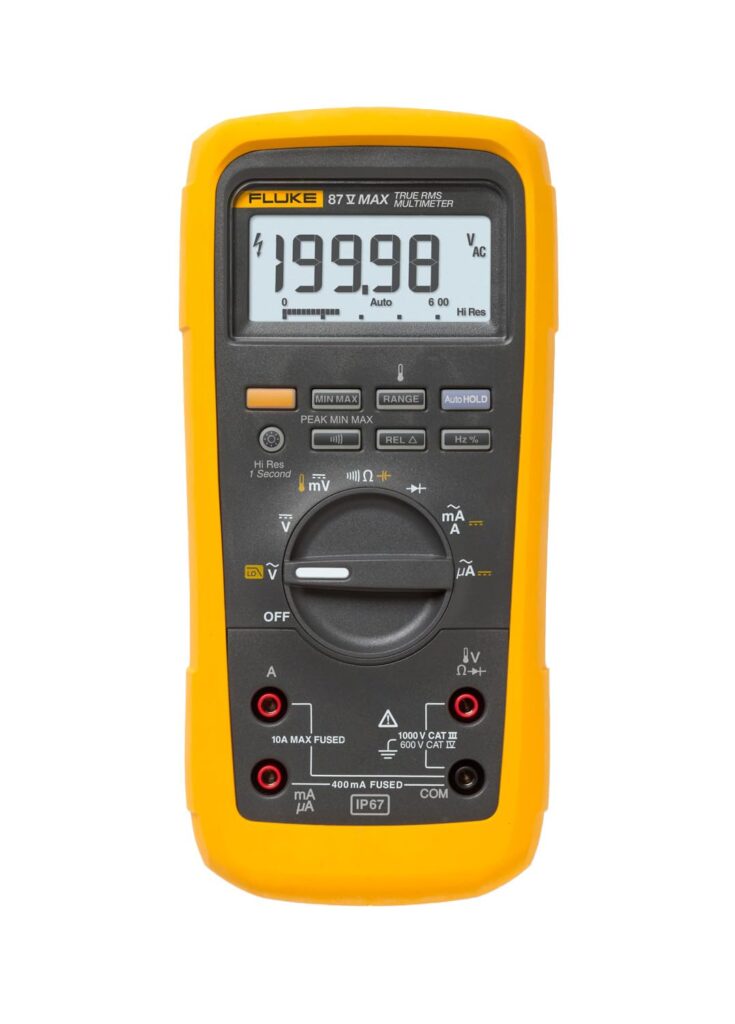

The Fluke 87V MAX is an upgraded version of the 87V, designed for those who work in the harshest environments. It retains the same measurement accuracy and functionality but adds superior ruggedness, waterproofing, and improved drop protection.
⚙️ Key Specifications
| Feature | Fluke 87V | Fluke 87V MAX |
|---|---|---|
| Display | 6,000-count backlit LCD | 6,000-count backlit LCD |
| True RMS | Yes | Yes |
| AC/DC Voltage | 1000 V | 1000 V |
| AC/DC Current | 10 A (20 A for 30 sec) | 10 A (20 A for 30 sec) |
| Resistance | 50 MΩ | 50 MΩ |
| Capacitance | 9,999 µF | 9,999 µF |
| Frequency | 200 kHz | 200 kHz |
| Temperature | –200°C to +1090°C | –200°C to +1090°C |
| Battery Life | ~400 hours | ~800 hours |
| Display Count | 6,000 (20,000 in high-res mode) | 6,000 (20,000 in high-res mode) |
| Drop Protection | 1 meter | 4 meters (13 feet) |
| Ingress Protection | IP30 | IP67 (waterproof and dustproof) |
| Operating Temperature | –20°C to +55°C | –40°C to +55°C |
| Safety Rating | CAT IV 600V / CAT III 1000V | CAT IV 600V / CAT III 1000V |
💪 Durability and Build Quality

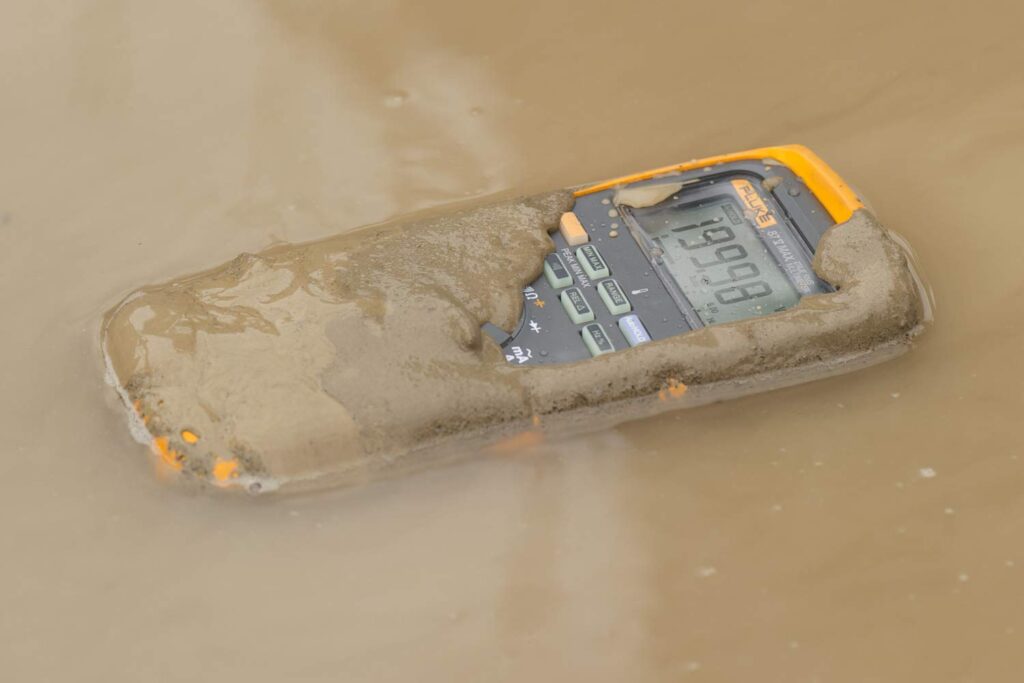

The biggest difference between the two models lies in their construction. The Fluke 87V MAX was designed to take a beating. It can withstand drops from up to 4 meters (13 feet) and has an IP67 rating, meaning it’s completely dust-tight and can be submerged in up to one meter of water for 30 minutes. This makes it perfect for outdoor, industrial, and field service applications.
The Fluke 87V, while also robust and well-built, has a 1-meter drop rating and an IP30 rating, meaning it offers basic dust protection but no water resistance. It’s durable enough for workshops, panels, and indoor environments but not ideal for heavy outdoor use or wet conditions.
⚡ Performance and Accuracy
Both meters share the same legendary accuracy. The True RMS capability ensures precise readings on complex, non-sinusoidal signals — critical when working with variable frequency drives (VFDs), switching power supplies, or motor controls.
Each model also offers:
- A high-resolution 20,000-count mode for fine voltage adjustments
- Auto and manual ranging for flexibility
- Temperature measurement using the included thermocouple
- Min/Max/Avg recording for capturing signal variations
- Peak capture for transient voltage spikes up to 250 µs
In terms of measurement capability, they perform identically. Where they differ is in protection and usability in extreme conditions.
🌡 Environmental and Field Use

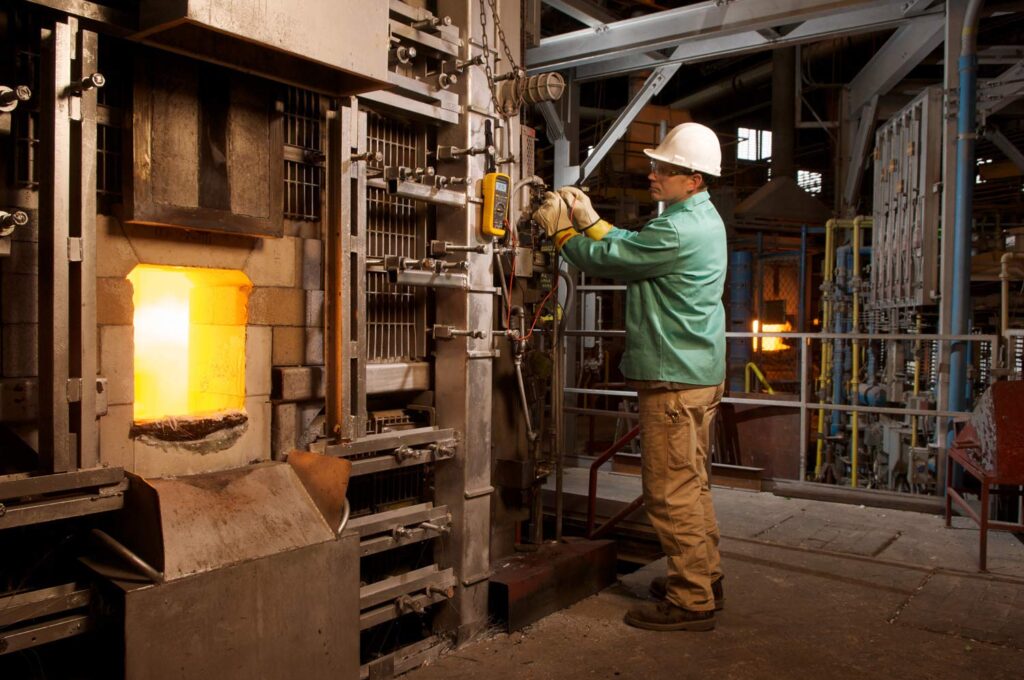

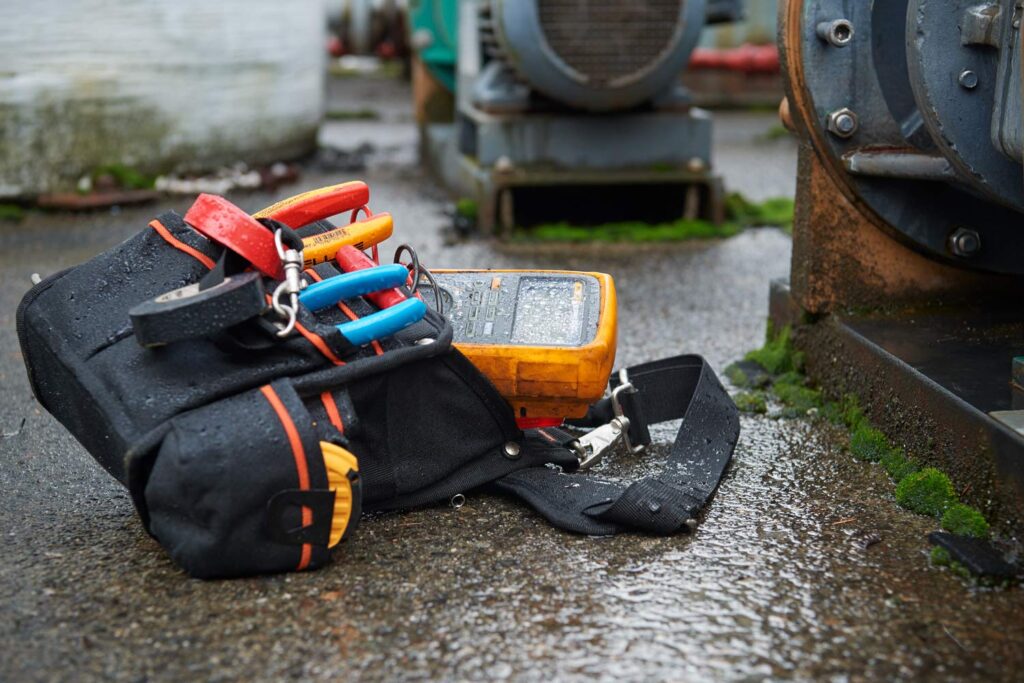

The Fluke 87V MAX is engineered for outdoor and industrial technicians. With an operating range down to –40°C, it’s perfect for cold storage environments, outdoor maintenance, or utility fieldwork. The rubberized holster provides extra grip and shock absorption, while the waterproof casing allows it to perform even in rain or snow.
The Fluke 87V still handles most professional environments with ease but may require extra care in wet, dusty, or extreme conditions. It’s more suited to electricians, lab technicians, and maintenance engineers working indoors or in controlled environments.
🔋 Battery Life and Convenience
One of the underrated upgrades in the 87V MAX is its extended battery life — nearly double that of the standard 87V. It’s powered by three AA batteries compared to a single 9V battery in the 87V. This not only increases operating time but also reduces downtime in the field.
Both models feature easy battery replacement and a stable, accurate auto power-off system to conserve energy during extended use.
🧰 Safety and Protection
Both the Fluke 87V and 87V MAX meet CAT IV 600V and CAT III 1000V safety standards, meaning they are designed for safe use in industrial power systems. The internal fuse protection and input alert system further ensure safe operation, even when working with high-energy circuits.
🧩 Ideal Users
| User Type | Recommended Model | Reason |
|---|---|---|
| Industrial Electricians | 87V MAX | Waterproof, drop-proof, built for tough conditions |
| Field Technicians / Outdoor Workers | 87V MAX | IP67 rating and wide temperature range |
| Lab Technicians / Indoor Use | 87V | Classic accuracy, less need for extreme ruggedness |
| HVAC Technicians | 87V | Ideal for everyday temperature and voltage checks |
| Utility and Plant Maintenance | 87V MAX | Durable and reliable in high-stress environments |
🏁 Verdict
Both the Fluke 87V and Fluke 87V MAX deliver the same world-class measurement accuracy, True RMS precision, and reliability that professionals expect from Fluke.
Choose the Fluke 87V if you work primarily in indoor or controlled environments, such as labs, workshops, or building maintenance. It’s proven, dependable, and one of the most trusted meters ever made.
Choose the Fluke 87V MAX if your job demands maximum durability. With IP67 waterproofing, 4-meter drop protection, and extended battery life, it’s built for technicians who face harsh outdoor or industrial conditions daily.
In short, both meters embody Fluke’s legendary performance, but the 87V MAX takes ruggedness to the extreme.
