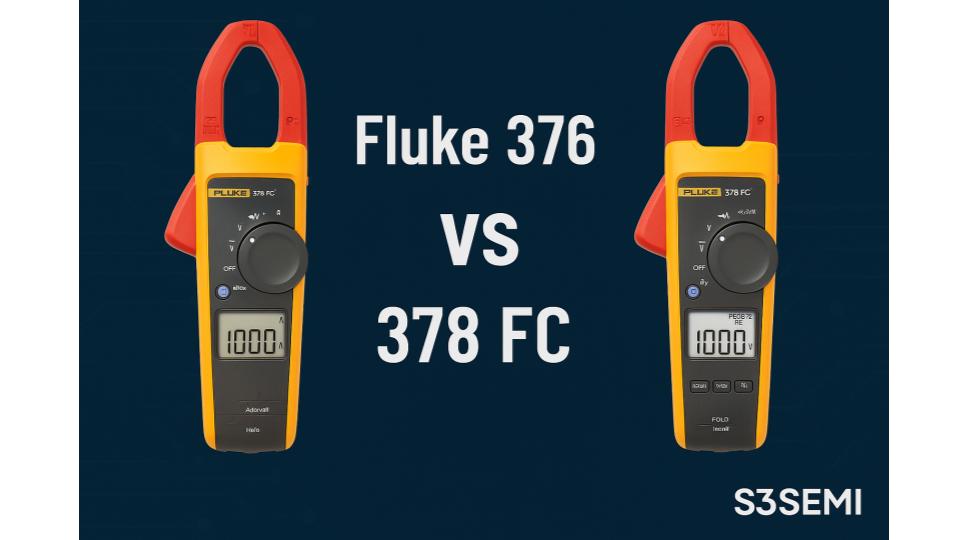

When it comes to professional clamp meters, Fluke is often the first name that comes to mind. Two of their most popular models are the Fluke 376 FC and the Fluke 378 FC. Both are high-performance True-RMS meters designed for electricians and technicians, but they target slightly different needs. Let’s dive into the details to see which one is right for you.
📋 Overview of the Fluke 376 FC
The Fluke 376 FC is part of Fluke’s long-standing 370 series. It’s a versatile clamp meter with wireless connectivity through Fluke Connect, making it easy to log and share data.
Key Features
- True-RMS AC/DC current measurements up to 1000 A
- AC/DC voltage up to 1000 V
- iFlex® flexible current probe for measuring up to 2500 A AC
- Wireless data logging with Fluke Connect
- Inrush current measurement for motor start applications
- CAT IV 600 V / CAT III 1000 V safety rating
This model is best suited for electricians who need a reliable all-around clamp meter with strong current measurement capabilities.
📋 Overview of the Fluke 378 FC
The Fluke 378 FC is one of Fluke’s more advanced clamp meters, with innovative power quality features. What makes it stand out is the FieldSense™ technology, which allows you to measure AC voltage without making direct contact with live wires.
Key Features
- True-RMS AC/DC current up to 1000 A
- AC/DC voltage up to 1000 V (with FieldSense non-contact measurement for AC voltage)
- iFlex® probe for current measurements up to 2500 A AC
- Power quality indicator (PQI) to detect issues like voltage unbalance and overloads
- Wireless connectivity with Fluke Connect
- Safety rated CAT IV 600 V / CAT III 1000 V
This model is geared toward professionals who not only want accurate electrical measurements but also need insight into power quality problems without bringing in more complex tools.
⚖️ Side-by-Side Comparison
| Feature | Fluke 376 FC | Fluke 378 FC |
|---|---|---|
| Current Range | 1000 A (AC/DC), 2500 A with iFlex | 1000 A (AC/DC), 2500 A with iFlex |
| Voltage Range | 1000 V AC/DC | 1000 V AC/DC (FieldSense for AC) |
| Power Quality | ❌ | ✅ (PQI indicators) |
| iFlex Compatibility | ✅ | ✅ |
| Fluke Connect | ✅ | ✅ |
| Inrush Current | ✅ | ✅ |
| Safety Rating | CAT IV 600 V / CAT III 1000 V | CAT IV 600 V / CAT III 1000 V |
| Special Feature | Reliable clamp meter with wireless logging | FieldSense™ technology + Power Quality indicators |
✅ Pros and Cons
Fluke 376 FC
✔ Proven, reliable design
✔ Wide current measurement with iFlex
✔ Inrush current feature for motors
✘ No power quality insights
✘ Requires direct contact for voltage measurements
Fluke 378 FC
✔ FieldSense non-contact voltage measurement
✔ Power quality indicators built-in
✔ Excellent for troubleshooting PQ issues
✘ Pricier than the 376 FC
✘ FieldSense may take time to trust for critical measurements
🏆 Verdict: Which One Should You Buy?
- Choose the Fluke 376 FC if you want a solid, general-purpose clamp meter with all the essential functions at a lower cost. It’s an excellent workhorse for electricians and technicians.
- Choose the Fluke 378 FC if you need advanced troubleshooting capabilities, especially for power quality issues. Its FieldSense technology and PQ indicators make it a strong choice for professionals working in environments where power disturbances are common.
Both models are rugged, reliable, and safety-rated for demanding jobs. The decision ultimately comes down to whether you want just a clamp meter (376 FC) or a clamp meter plus power quality insights (378 FC).
